Flexitanks 24 KL

0 ^ltr

Loading Capacity

Our Product

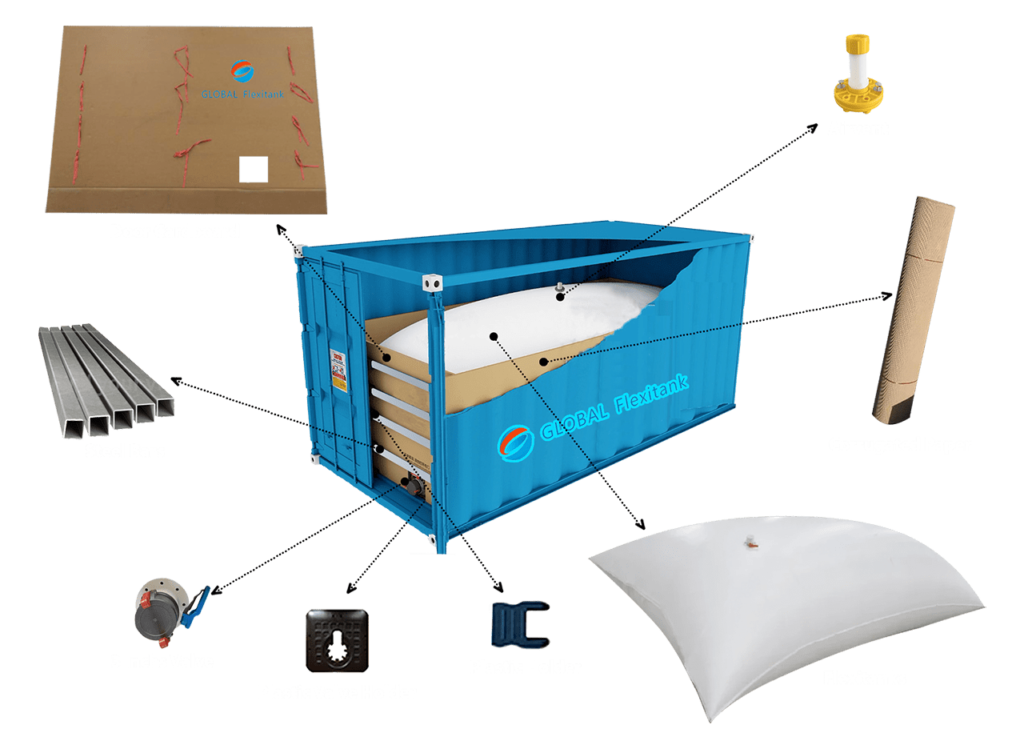

Flexitank is a single use package，produced with 1 layer PP woven colth and multi-layer seamless tube of food-grade PE film, loading capacity is from 16,000 up to 24,000 liters, fitted into a 20ft container, specifically developed for non-hazardous bulk liquid transportation.

Flexitank provide a safe and cost-effective option for the transport of many bulk liquids to the conventional systems.

It is the best replacement for the traditional and expensive package like jars, iron drums and buckets to transport non-hazardous liquid.

Flexitanks are single-use to prevent cross-contamination and are disposable or recyclable at the destination, eliminating the need for return loads.

Loading and unloading times are lower than those of IBC or drums. Shipping without packaging gives customers the option to package and distribute at a lower cost to the filling destination.

Flexitanks can transport up to 31 percent more liquid per container than any other method, and, because they are single-use, they do not require potentially harmful cleaning techniques.

Our Product

Flexitank Technical Data

Capacity (liters): 18.000, 20.000, 24.000 and 25.000 liters
Dimension (m): 6,84 m - 7,65 m x 3,95 m
Thickness Layer (ISO4593:1993): 0.125±6% mm/layer
Layer (Inner + Outer): 3 Inner PE + 1 Outer PP
Tensile Strength, TD (ASTM D882): ≥32 (MD) (MPA)
Tensile Strength, MD (ASTM D882):≥32 (TD) (MPA)
Tearing Strength, MD (ASTM D1922): ≥16 (g/mic)
Low Temperature Flexibility: - 20 Deg C
High Temperature Flexibility: 65 Deg C
Loading Temperature: -20 - 65 Deg C

What We’re Offering to Our Clients

Product Advantage

Wide Applications

Low Cost

Convenient Transportation

Eco Friendly

Easy Installation

Wide Applications

Low Cost

Convenient Transportation

Eco Friendly

Easy Installation

Suitable Product

Food Liquid

Alcohol liquids (wine, beer syrup, yellow wine, etc.) , edible oil, including all kinds of vegetable oil (corn oil, Olive oil, palm oil, Tung oil & China wood oil, coconut oil and castor oil etc.) fish oil, food additives. Water, juice, concentrate Liquor, drug additives sorbic alcohol, malt extract, fruit jam, egg white, liquid glucose, syrups, saccharose (malt dust for example), sauces, (soy for example), milk, sugar, etc.

Suitable Product

Non hazardous liquids Chemicals

Plasticizer, synthetic resin, cleanser, eradicator shampoo, disinfector, antirust agent & inhibitor, surfactant, polybasic alcohol, Feed additives, saline solution, propanediol & propylene glycol, ethanediol glycol, polyether, Alkylation agents, herbicide, Fertilizer, (natural) emulsions, synthetic latex, glue water, adhesion agents (silicate for example), water based paint lanolin, Fatty acid, paper pulp, fluorescence brightener, printing ink, silicate liquid, tall oil, dispersant & chlorinated paraffin, etc.

Suitable Product

Industrial Oil

Base oil, fat, machine oil, lubricating oil (additives), electric insulating oil, drilling mud oil, bunker oil, White oil, glycerine, hydraulic fluid, industrial gear oil, high oil fatty acid, Petr oxolin, mineral oil, printing oil, technical oil, Alkylate, etc.
